Adding a Sentek unit on the CropX App

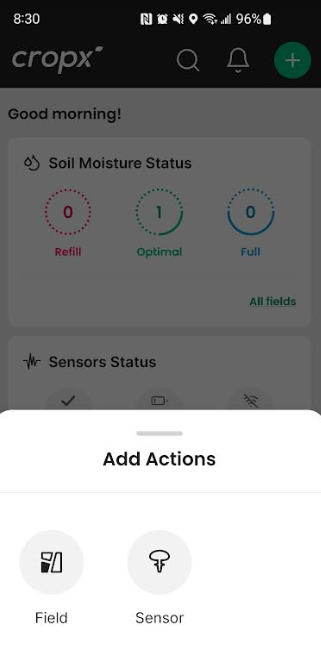

1: Using the green plus sign on the top right of your app, choose the option to add a sensor

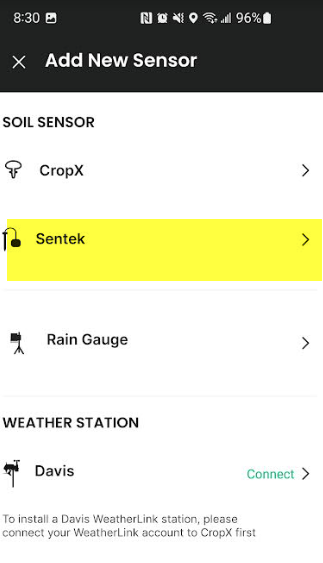

2: Choose Sentek from the list

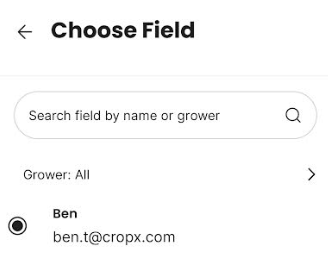

3: Select a field to install the sensor on

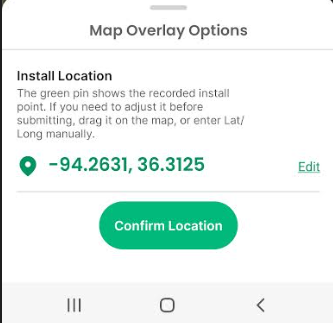

4: Confirm your GPS Coordinates

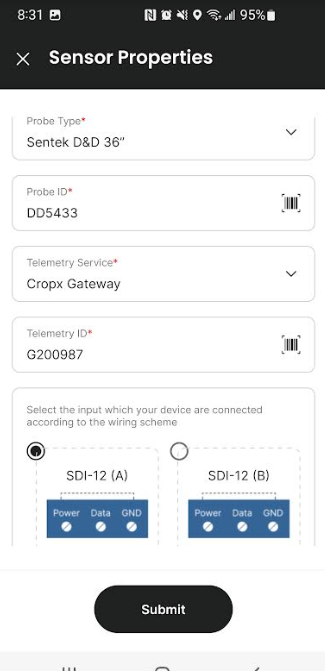

5: Select from the pick list the type of probe. Enter in your probe ID and the telemetry ID.
You can also choose the option to scan the QR code for the Telemetry ID.
Also indicate what slot you used for the SDI-12 connection and click submit.
