How to Charge a CropX Sensor and CropX Telemetry
The CropX sensor and CropX Telemetry must be charged periodically.
The SV4 sensor and CropX Telemetry each come with a removable battery that you can re-charge. You can also purchase additional batteries to have on hand so you can swap them out in the field.
Our legacy CropX sensor doesn't have a removable removable battery, so the entire sensor will need to be extracted in order to be charged.
This article will review the V4 sensor and Telemetry, followed by instruction on how to charge the legacy sensor.
Prerequisites
- A CropX Sensor or CropX Telemetry
- Charging cable (your hardware should have come with one)
- Charger to connect to charging cable
- Outlet connected to electricity
To Charge the V4 CropX Sensor or CropX Telemetry
- Remove the charging socket cover on the CropX Sensor or open the door on the Telemetry.

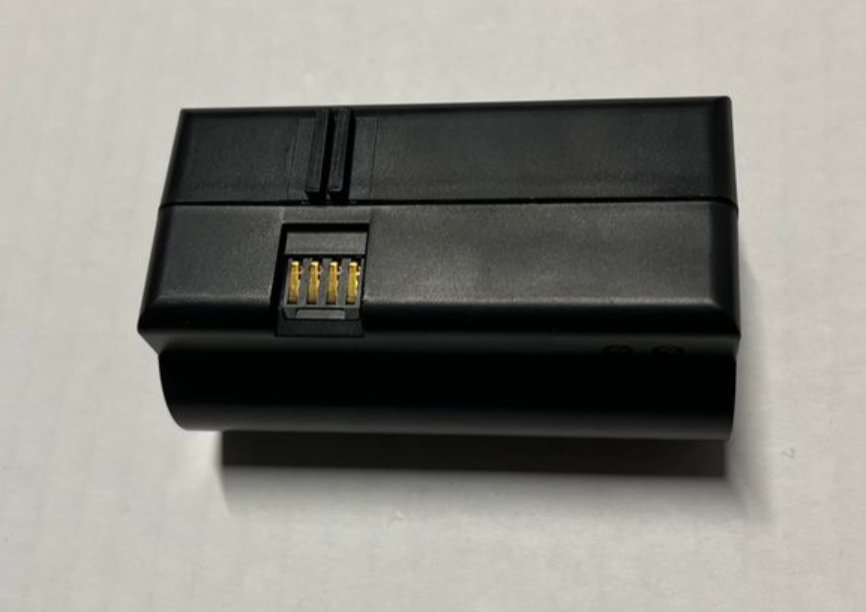

- Remove the black battery
battery
- Connect the USB cable to the battery's USB cable port (cable provided) and connect to any USB power adapter.
- Allow the battery to fully charge for at least 12-24 hours, or until the light changes to green
- Place battery back in unit, you will hear an audible chirp when the battery is in place.
- Place cover back on unit.
To Charge the Legacy CropX Sensor
- Gently remove the 5 screws on top of sensor.
- Remove the charging socket cover.
- Connect the USB cable to the USB cable port (cable provided) and connect to any USB power adapter.
- Allow the sensor to fully charge for at least 12-24 hours, or until the light changes to green (or flashing blue depending on the version).
- Before reattaching the charging socket cover, make sure the rubber gasket is in place.
If Recharging with a Power Bank:
The Specifications should be:
- Output: DC 5V
- Capacity: At least 11000 mAh
