Deactivating a Sensor

Deactivating a Sensor on CropX WebApp

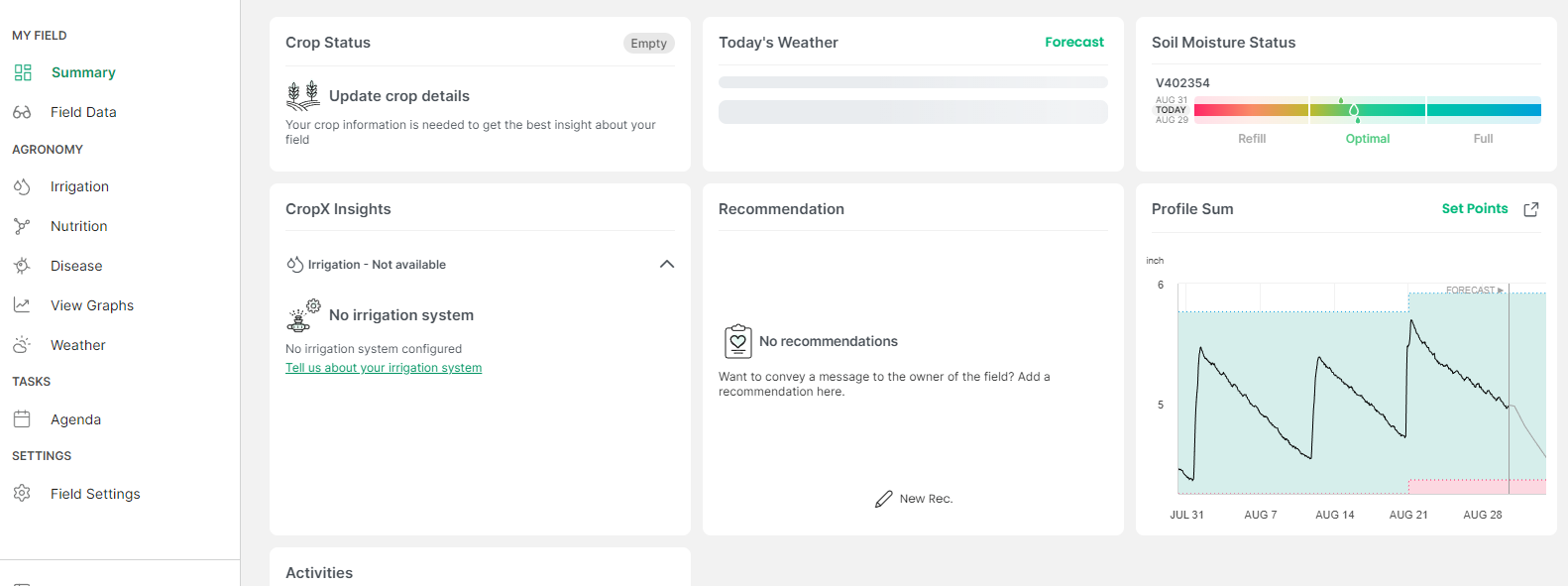

1: Open the field where the sensor you would like to deactivate is installed.

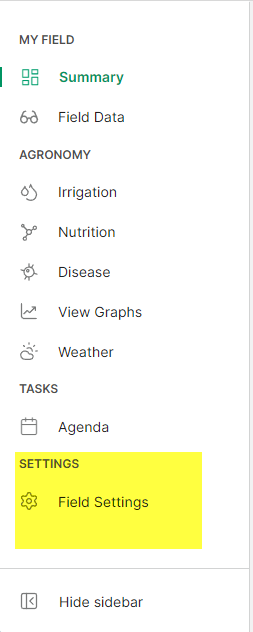

2: on the left hand menu, please select “Field Settings”

3: Under field settings, select “Sensors”

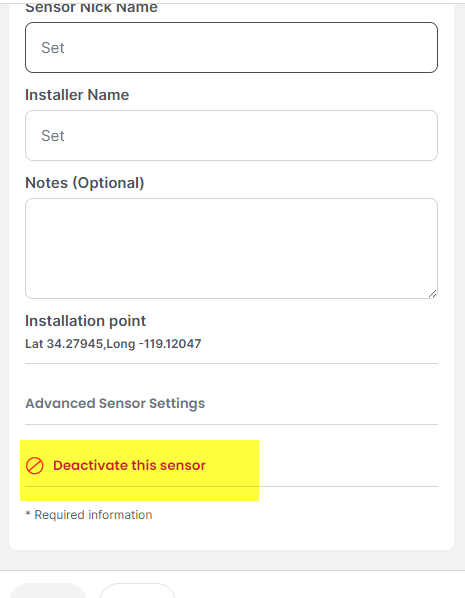

4: Select the option to “Deactivate this sensor”

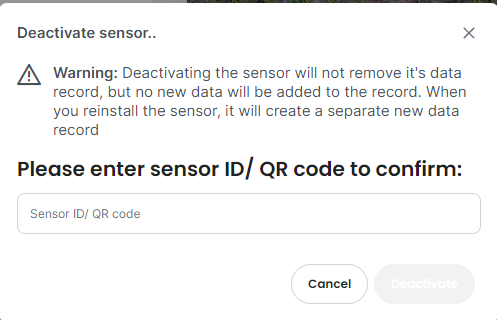

5: Type in the QR code of the sensor to verify and then click “Deactivate”

Deactivating a Sensor on CropX Mobile App

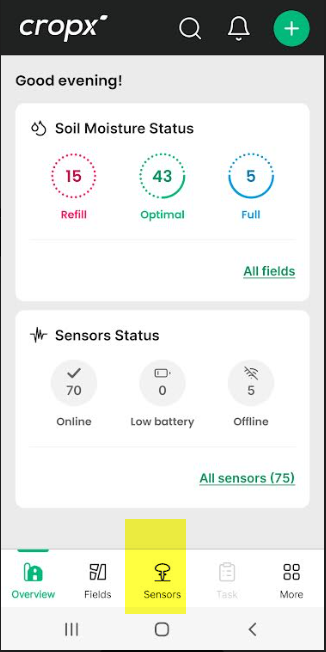

1: On the main overview page, find he sensor tab on the bottom.

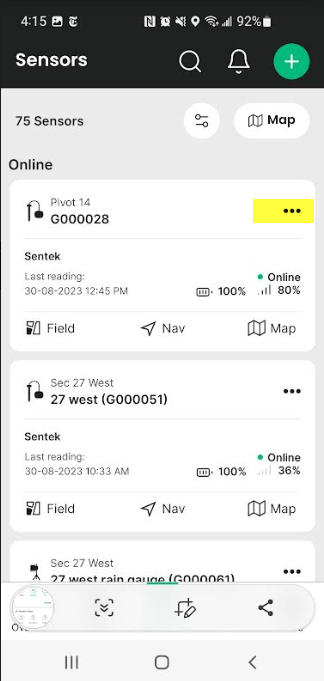

2: Find the sensor you wish to deactivate and click the "3 dot" menu

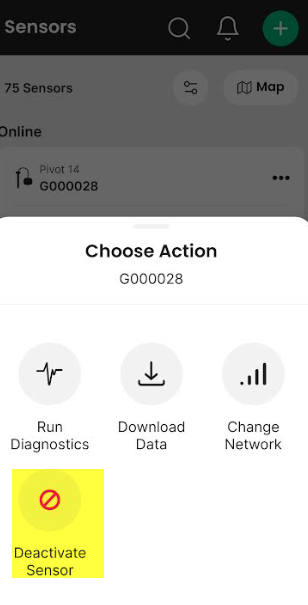

3: Choose the option to “Deactivate Sensor”
